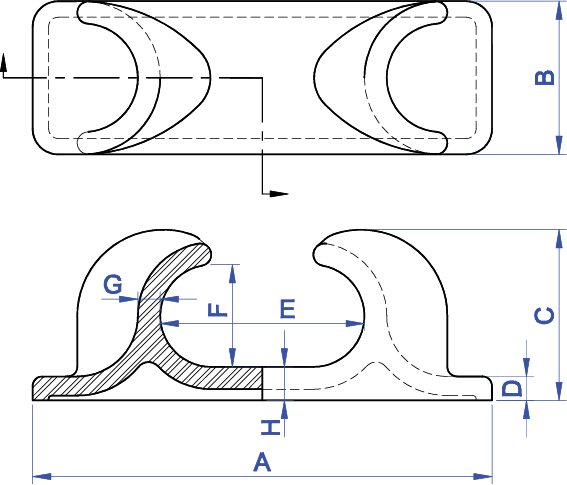

| MODEL No. | PART No. | SIZE | A | B | C | D | E | F | G | H | WT. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DF-496 | 89451 | 4x8 | 19-3/4" | 6" | 6-3/4" | 1-1/8" | 8" | 4" | 1" | 1-3/8" | 75 |
| DF-495 | 89443 | 5x11 | 25-1/4" | 8" | 9" | 1-5/16" | 10-3/4" | 5-3/8" | 1-1/4" | 1-13/16" | 132 |
| DF-485 | 20362 | 6x12 | 27-3/4" | 9" | 10-1/8" | 1-1/2" | 12" | 6" | 1-3/8" | 2-1/16" | 175 |
| DF-489 | 89346 | 8x16 | 36" | 12" | 13-3/8" | 1-7/8" | 16" | 8" | 1-3/4" | 2-5/8" | 435 |
