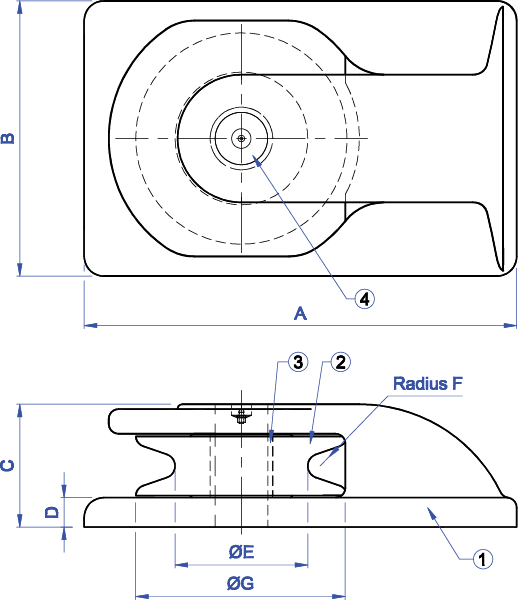

| MODEL No. | PART No. | SIZE | A | B | C | D | ØE | F | ØG | WT. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| DF-164 | 6475 | 11" | 22" | 14" | 6 1/4" | 1 1/2" | 6 3/4" | 5/8" | 10 3/4" | 296 |
| PIECE NO. | DESCRIPTION | PART NO. | MATERIAL |
|---|---|---|---|
| 1 | HOUSING | 6467 | CAST STEEL |
| 2 | ROLLER SHEAVE | 6734 | CAST STEEL |
| 3 | BUSHING | 6726 | BRONZE |
| 4 | ROLLER PIN | 76198 | STEEL |
