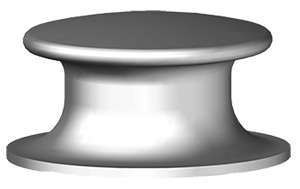

DF-185 10" Button Chock
Button Chocks
Cast Steel
Combination Bitt
Fairlead Pedestal
HD Roller
Mooring Ring
Panama Canal
Pivoting Fairlead
Pivoting Roller
Roller Button
Roller Chock
Single Roller
Stainless Steel
Wire Rope Button
Wire Rope Open

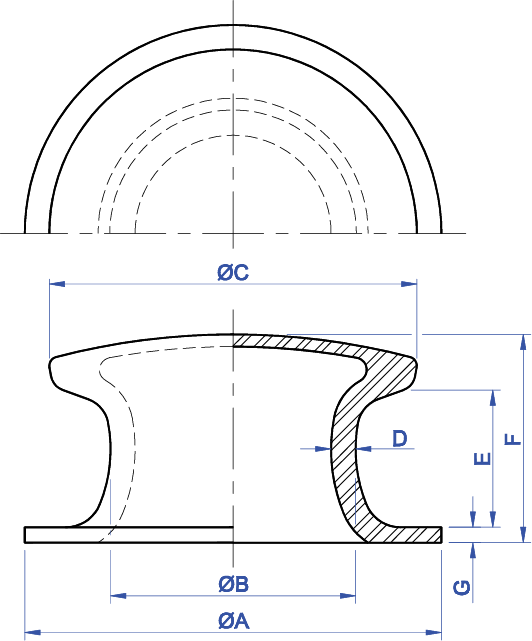

MODEL No.
PART No.
SIZE
ØA
ØB
ØC
D
E
F
G
WT. (lbs)
DF-185
14567
10"
17"
10"
15"
1"
5 3/4"
8 1/2"
5/8"
145
MODEL No.
PART No.
SIZE
ØA
ØB
ØC
D
E
F
G
WT. (kg)
DF-185
14567
254 mm
432 mm
254 mm
381 mm
25 mm
146 mm
216 mm
16 mm
66
