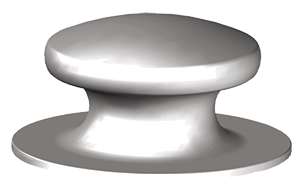

DF-194 9" Button Chock
Button Chocks
Cast Steel
Combination Bitt
Fairlead Pedestal
HD Roller
Mooring Ring
Panama Canal
Pivoting Fairlead
Pivoting Roller
Roller Button
Roller Chock
Single Roller
Stainless Steel
Wire Rope Button
Wire Rope Open

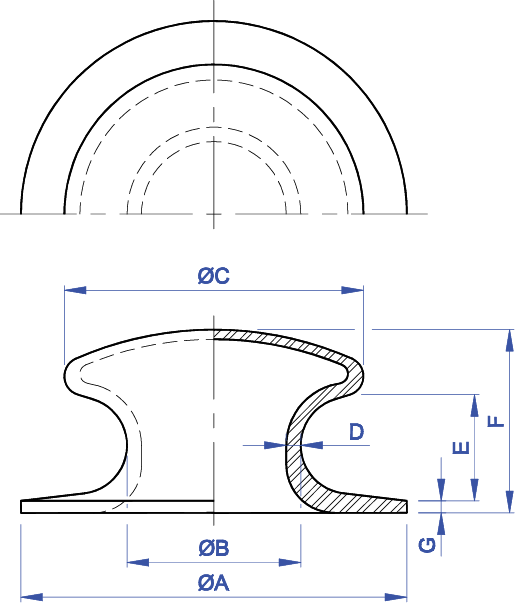

MODEL No.
PART No.
SIZE
ØA
ØB
ØC
D
E
F
G
WT. (lbs)
DF-194
16128
9"
20"
9"
15 1/2"
3/4"
5 1/2"
9 1/2"
5/8"
158
MODEL No.
PART No.
SIZE
ØA
ØB
ØC
D
E
F
G
WT. (kg)
DF-194
16128
229 mm
508 mm
229 mm
394 mm
19 mm
140 mm
241 mm
16 mm
72
