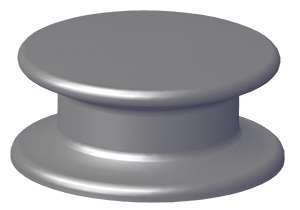

DF-473C 8" Button Chock
Button Chocks
Cast Steel
Combination Bitt
Fairlead Pedestal
HD Roller
Mooring Ring
Panama Canal
Pivoting Fairlead
Pivoting Roller
Roller Button
Roller Chock
Single Roller
Stainless Steel
Wire Rope Button
Wire Rope Open

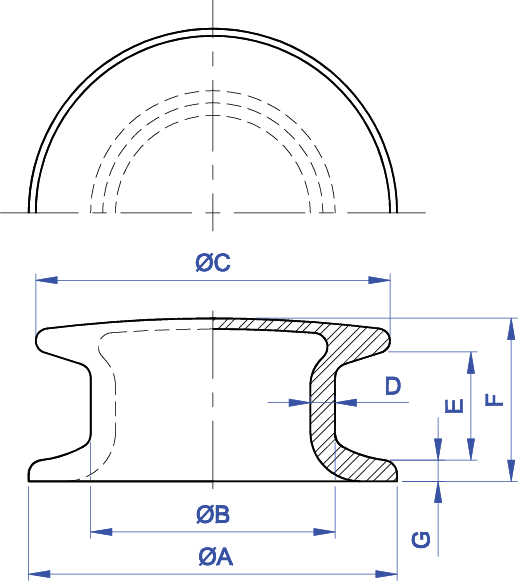

MODEL No.
PART No.
SIZE
ØA
ØB
ØC
D
E
F
G
WT. (lbs)
DF-473C
77461
8"
13"
8 5/8"
12 1/2"
7/8"
3 3/4"
5 3/4"
3/4"
75
MODEL No.
PART No.
SIZE
ØA
ØB
ØC
D
E
F
G
WT. (kg)
DF-473C
77461
203 mm
330 mm
219 mm
318 mm
22 mm
95 mm
146 mm
19 mm
35
