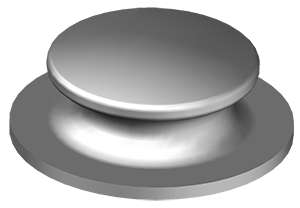

DF-538 11" Button Chock
Button Chocks
Cast Steel
Combination Bitt
Fairlead Pedestal
HD Roller
Mooring Ring
Panama Canal
Pivoting Fairlead
Pivoting Roller
Roller Button
Roller Chock
Single Roller
Stainless Steel
Wire Rope Button
Wire Rope Open

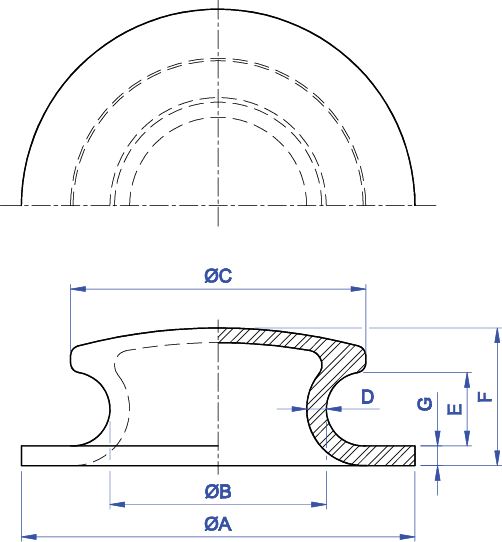

MODEL No.
PART No.
SIZE
ØA
ØB
ØC
D
E
F
G
WT. (lbs)
DF-538
89907
11"
20"
11"
15"
1"
3 3/4"
7"
1"
165
MODEL No.
PART No.
SIZE
ØA
ØB
ØC
D
E
F
G
WT. (kg)
DF-538
89907
279 mm
508 mm
279 mm
381 mm
25 mm
95 mm
178 mm
25 mm
75
