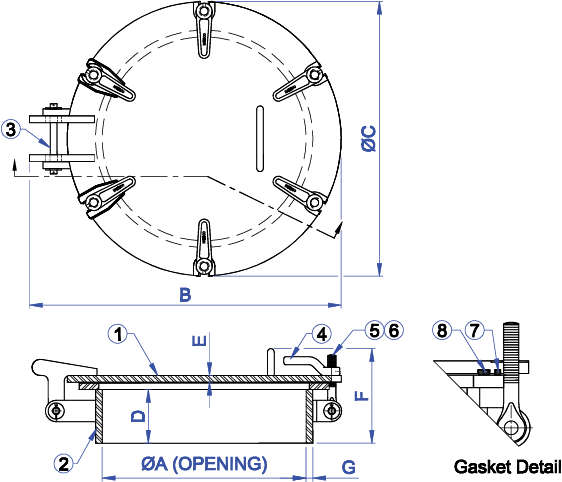

| MODEL No. | PART No. | SIZE | ØA | B | ØC | D | E | F | G | WT. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| DF-346-5 | 21158 | 19" | 19" | 29" | 25 5/8" | 5" | 5/8" | 8 13/16" | 5/8" | 200 |
| PIECE NO. | DESCRIPTION | PART NO. | MATERIAL |
|---|---|---|---|
| 1 | COVER ASSEMBLY | 21211 | STAINLESS |
| 2 | COAMING ASSEMBLY | 21212 | STAINLESS |
| 3 | HINGE PIN ASSEMBLY | 21217 | STAINLESS |
| 4 | DOG HANDLE W/ GREASE FITTING | 74838 | GALVANIZED |
| 5 | TUMBLE BOLT (QTY-4) | 87939 | STAINLESS |
| 6 | TUMBLE BOLT (QTY-2) | 87938 | STAINLESS |
| 7 | OUTER GASKET | 21808* | VITON |
| 8 | INNER GASKET | 21809* | TEFLON |
| *Gasket sold separately from hatch. | |||
