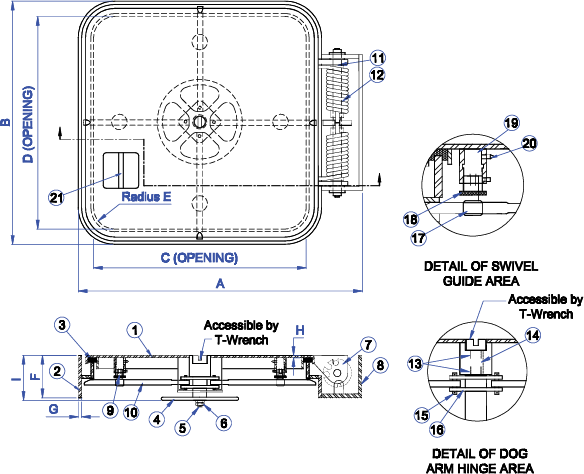

| MODEL No. | PART No. | SIZE | A | B | C | D | E | F | G | H | I | WT. (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DF-595-2424 | 93011 | 24x24 | 34 1/16" | 28 5/16" | 24" | 24" | 3" | 4" | 1/2" | 5/16" | 6 3/8" | 370 |
| DF-595-3030 | 93000 | 30x30 | 40 1/16" | 34 5/16" | 30" | 30" | 3" | 6" | 1/2" | 5/16" | 6 3/8" | 420 |
| 1. ADDITIONAL COAMING HEIGHTS AVAILABLE. 2. ADDITIONAL OPENING DIMENSIONS AVAILABLE. 3. OTHER GASKET MATERIALS AVAILABLE. |
||||||||||||
| PIECE NO. | DESCRIPTION | MATERIAL |
|---|---|---|
| 1 | HATCH COVER ASSEMBLY | STEEL |
| 2 | COAMING ASSEMBLY | STEEL |
| 3 | HATCH GASKET | NEOPRENE |
| 4 | HANDWHEEL ASSEMBLY | STEEL |
| 5 | CENTER SHAFT | STAINLESS |
| 6 | JAM NUT | STAINLESS |
| 7 | ADJUSTING SPROCKET | STEEL |
| 8 | HINGE BOX ASSEMBLY | STEEL |
| 9 | SWIVEL GUIDE ASSEMBLY | - |
| 10 | DOG ARM | STAINLESS |
| 11 | HINGE PIN | STAINLESS |
| 12 | HINGE SPRING | STAINLESS |
| 13 | BUSHING | NYLON |
| 14 | PACKING | GRAPHITE |
| 15 | DOG ARM PIN | STAINLESS |
| 16 | ROTATING BLOCK ASSEMBLY | STEEL |
| 17 | SWIVEL GUIDE | BRASS |
| 18 | ADJUSTMENT BUTTON | STEEL |
| 19 | SWIVEL GUIDE SPRING | STAINLESS |
| 20 | GREASE FITTING | STAINLESS |
| 21 | GRAB HANDLE | STEEL |
