DF-39 Double Wing Dog Handle
Barge Crane
Bilge Plates
Corner Plates
D-Ring
Document Boxes
Door Dog Kit
Drip Pan/Cover
Dry Box
Expansion Plate
Expansion Trunk
Fairlead Roller
Flag Pole
Fuel/Oil Tank
Hatch Hardware
Heads
Interlocking Pin
Ladder
Light Stand
Ocean Dome
PortLights
RatchetStrap
Signs
Steering Pole
Stuffing Gland
Suction Bellmouth
Cranes

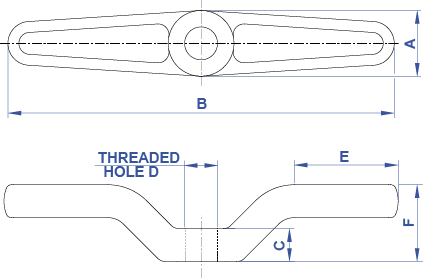

MODEL No.
A
B
C
D
E
F
WT. (lbs)
DF-39
1-1/2"
8-3/4"
3/4"
3/4"-10 UNC
2"
1-3/4"
1.2
MODEL No.
A
B
C
D
E
F
WT. (kg)
DF-39
38 mm
222 mm
19 mm
19 mm-10 UNC
51 mm
44 mm
0.54
MATERIAL
PART NUMBER
BRONZE
17876
