DF-43 Tumble Bolt
Barge Crane
Bilge Plates
Corner Plates
D-Ring
Document Boxes
Door Dog Kit
Drip Pan/Cover
Dry Box
Expansion Plate
Expansion Trunk
Fairlead Roller
Flag Pole
Fuel/Oil Tank
Hatch Hardware
Heads
Interlocking Pin
Ladder
Light Stand
Ocean Dome
PortLights
RatchetStrap
Signs
Steering Pole
Stuffing Gland
Suction Bellmouth
Cranes

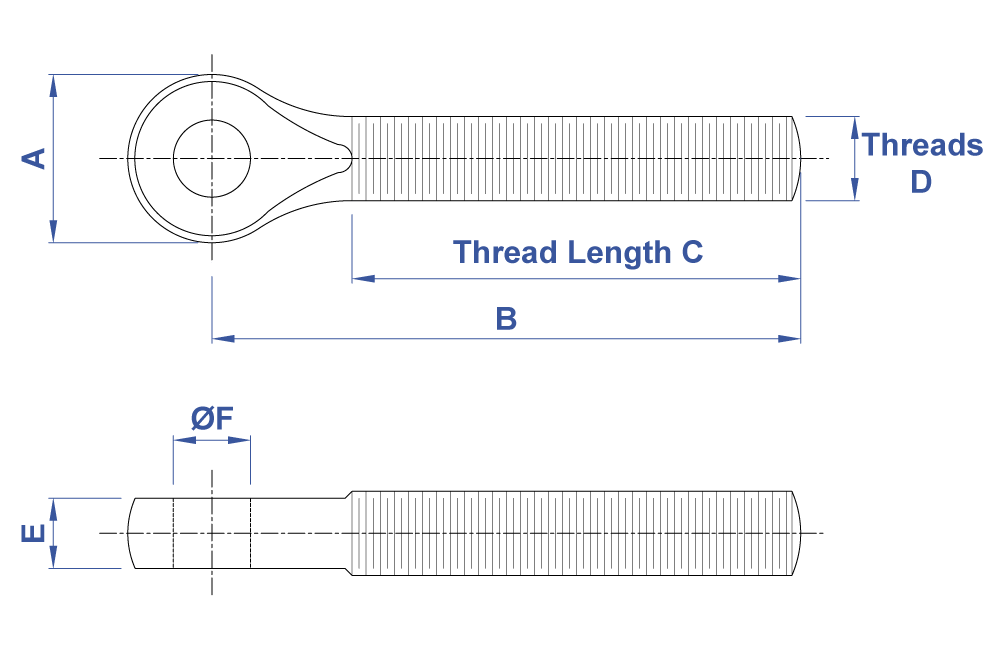

MODEL No.
SIZE
A
B
C
D
E
ØF
WT. (lbs)
DF-43
5-1/4"
1-1/2"
5-1/4"
4"
3/4"-10 UNC
5/8"
11/16"
1
MODEL No.
SIZE
A
B
C
D
E
ØF
WT. (kg)
DF-43
133 mm
38 mm
133 mm
102 mm
19 mm-10 UNC
16 mm
17 mm
1
MATERIAL
PART NUMBER
BRONZE
10774
STAINLESS 304
87939
