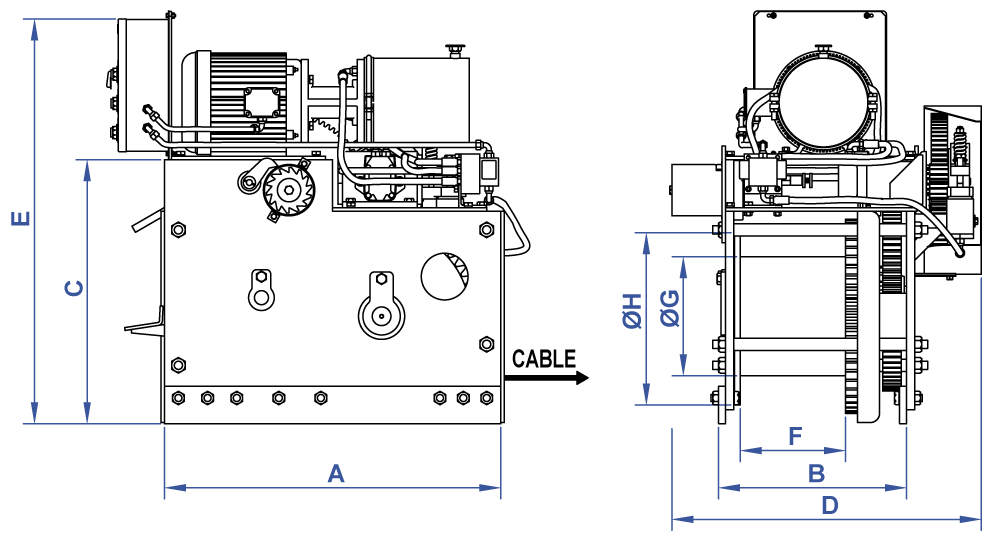

| MODEL No. | PART No. | A | B | C | D | E | F | ØG | ØH |
|---|---|---|---|---|---|---|---|---|---|
| DF-156-20 | REFER TO COATINGS TABLE | 30" | 15 3/8" | 25 3/4" | 28" | 41 1/4" | 7 1/4" | 10 3/4" | 16" |
| DF-156-40 | REFER TO COATINGS TABLE | 36" | 20 1/8" | 28 5/8" | 32 1/2" | 44 1/8" | 12 3/4" | 11 1/4" | 19" |
| DF-156-60 | REFER TO COATINGS TABLE | 47" | 23 1/8" | 36 1/4" | 36" | 51 3/4" | 10 5/8" | 14" | 24" |
| COATINGS | RH WINCH PART No. | LH WINCH PART No. |
|---|---|---|
| GALVANIZED 20T | 87580 | 87599 |
| GALVANIZED 40T | 87297 | 87300 |
| GALVANIZED 60T | 87726 | 87734 |
